Description
Product Overview

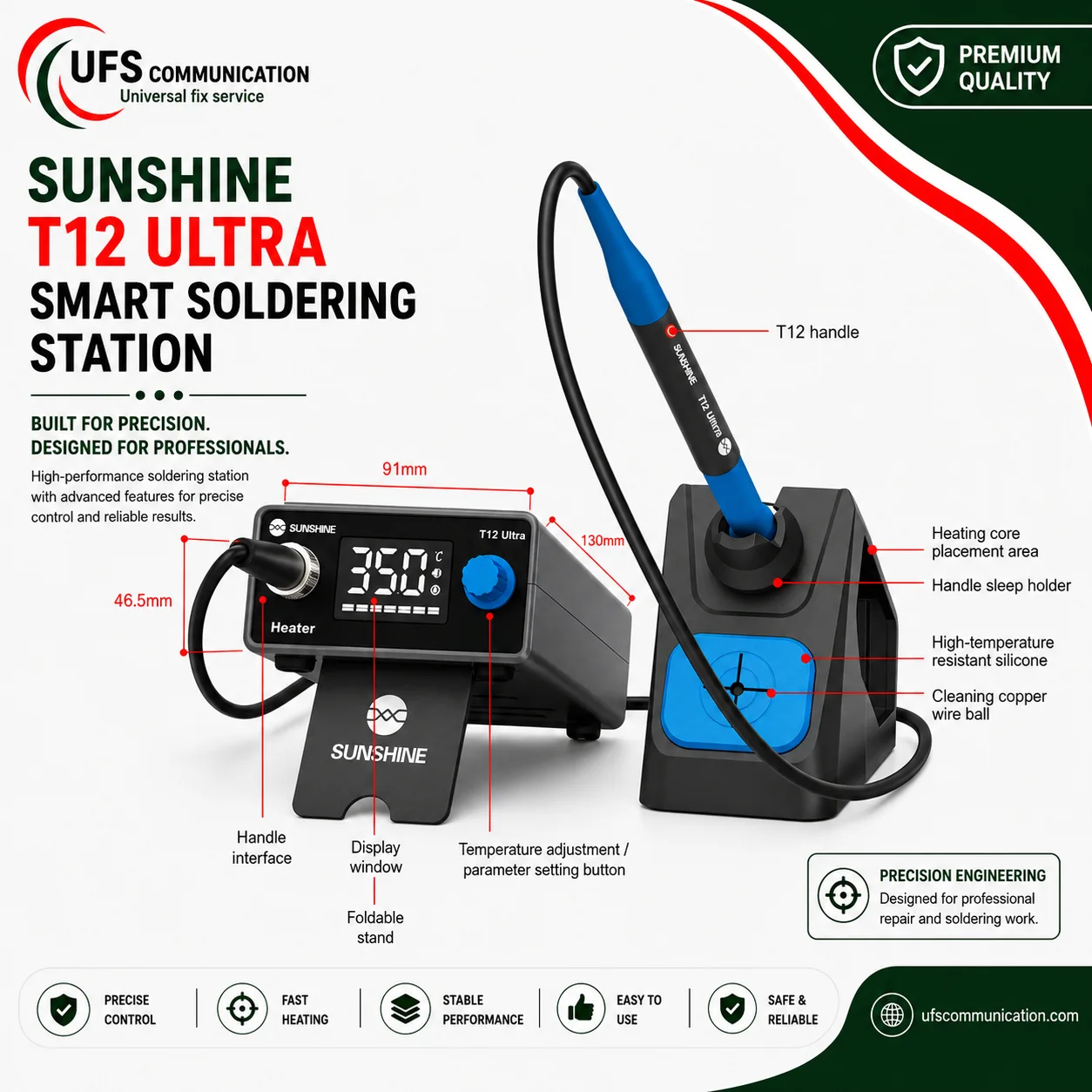

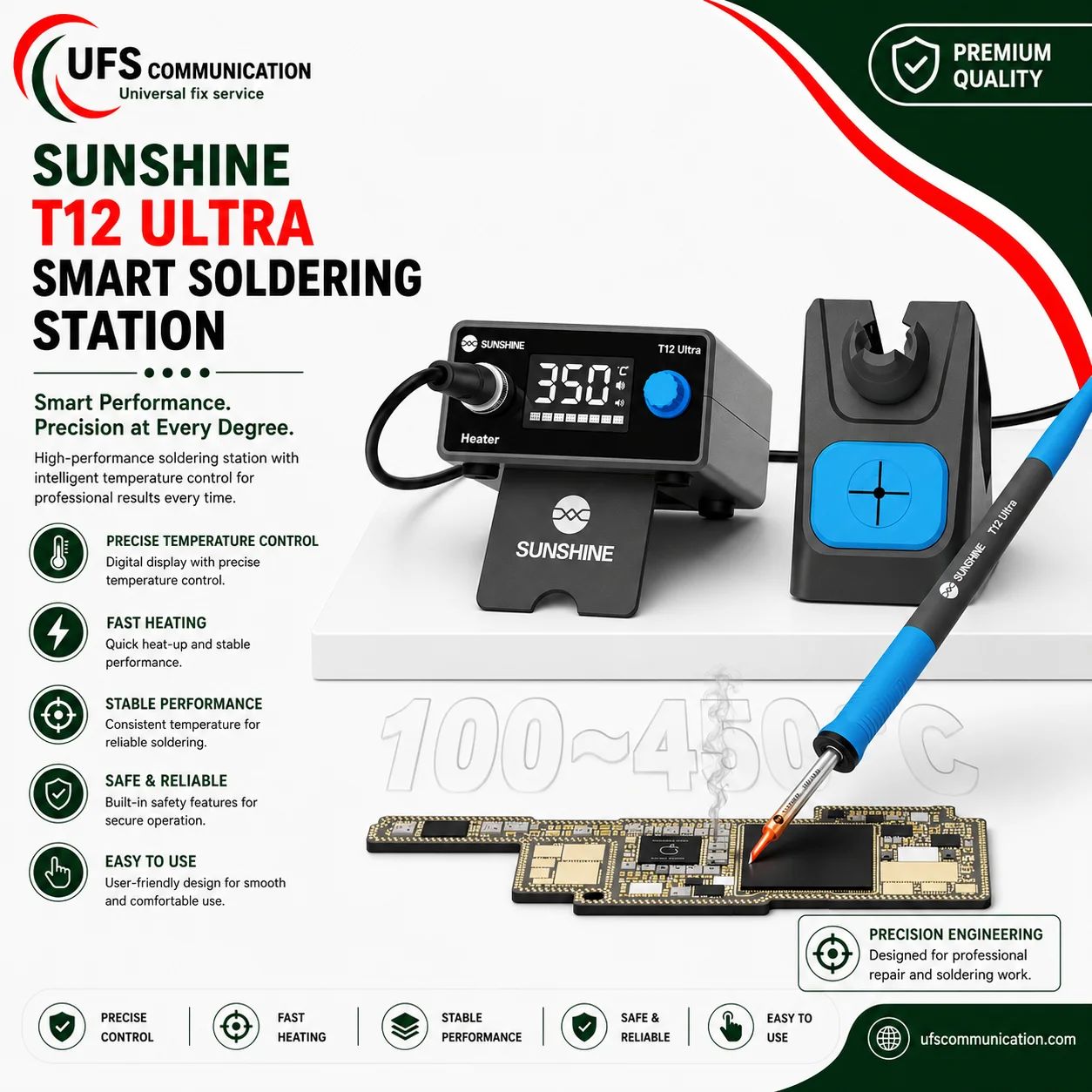

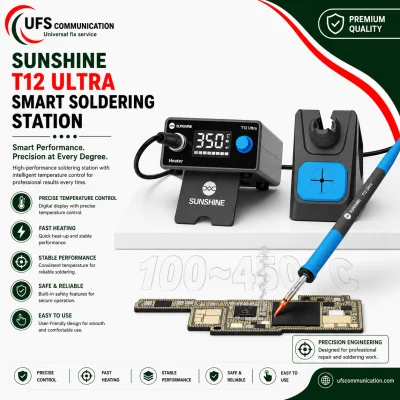

The SUNSHINE T12 Ultra Smart Settings Soldering Station is a high-precision, constant-temperature rework station specifically designed for intricate chip-level soldering, PCB motherboard repairs, flex cable fixes, and micro-component replacements. Featuring a 2–3 second rapid thermal heating recovery system and a unique ergonomic design, it provides technicians with precise temperature control and maximum comfort during long hours under a microscope.
Key Features

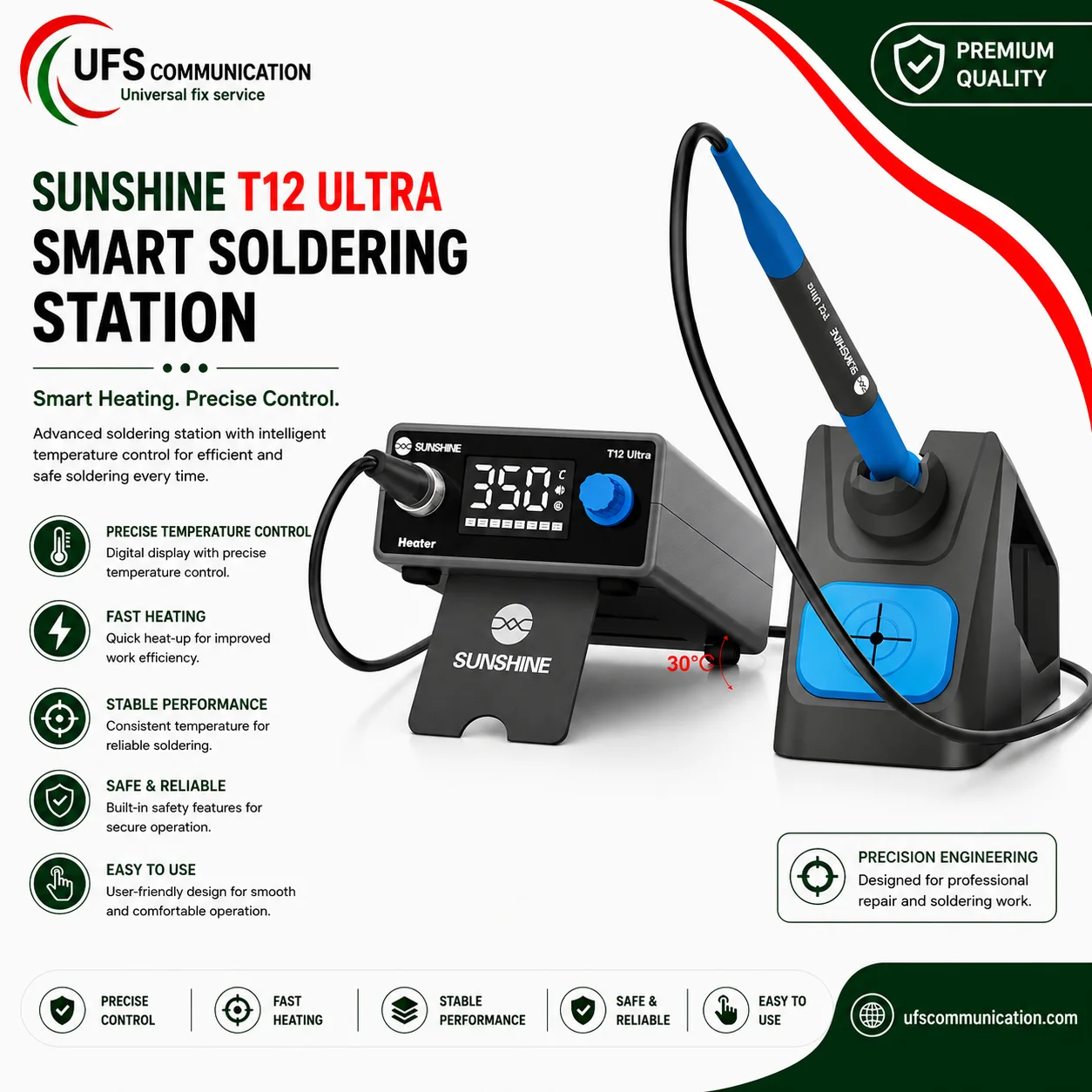

Ergonomic 30° Tilt & Retractable Stand: Built with a 30° angled display and a 4 cm retractable elevation stand to improve visibility, promote proper posture, and significantly reduce neck and eye strain.
Ultra-Fast Heating & Thermal Recovery: Rapid 2–3 second heating response ensures consistent thermal delivery for precision rework on sensitive smartphone components.

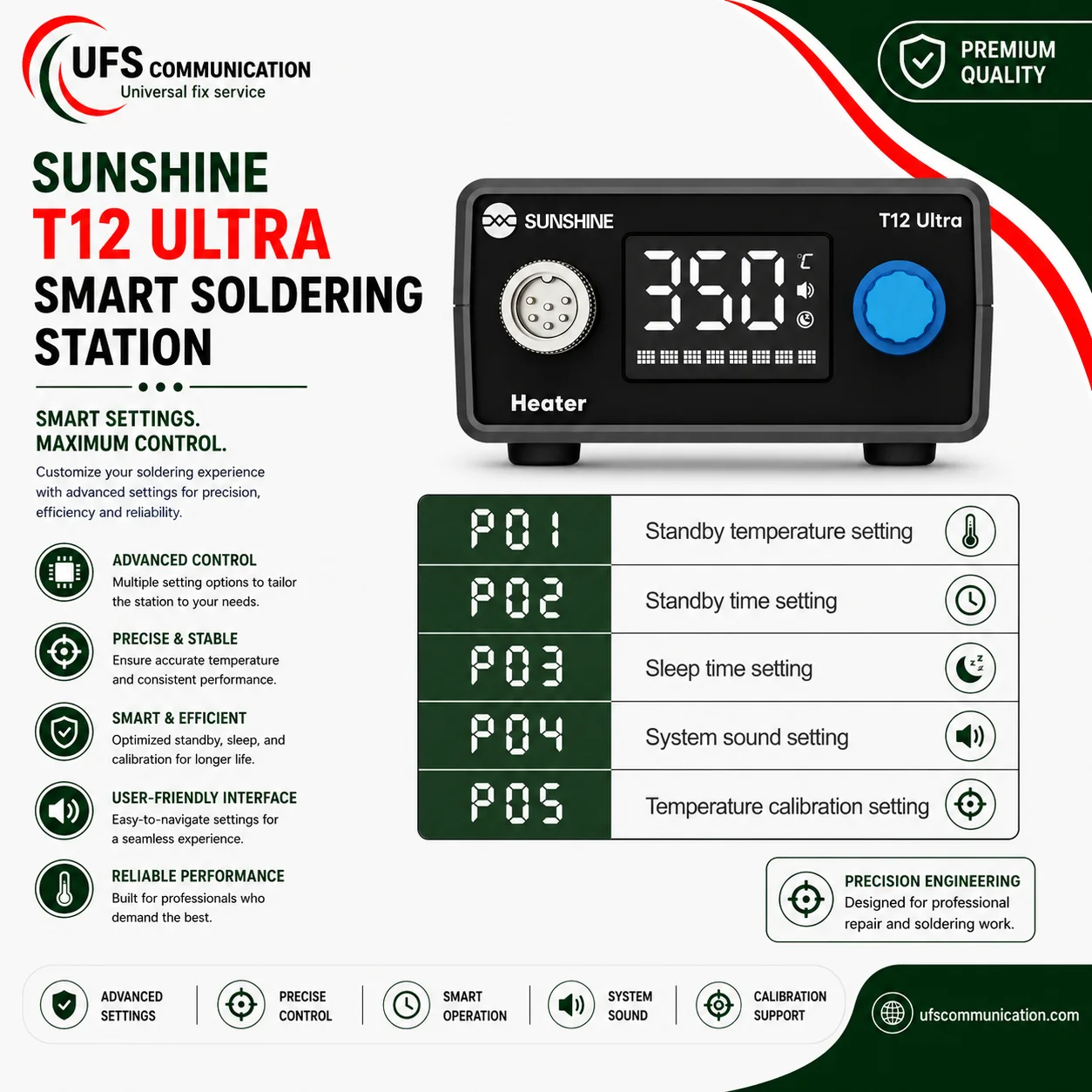

Smart Settings & Sleep Mode: Customizable standby and automatic sleep delayed timer (OFF to 120 minutes) help conserve tip life and power.
High-Precision Temperature Stability: Delivers exact temperature control with an accuracy of ±1
∘
C across a wide operating spectrum.
Comfortable T12 Handle: Outfitted with an anti-scald, heat-resistant silicone grip compatible with standard T12 integrated heating tips.
Integrated Multifunctional Stand: Heavy-duty anti-static base equipped with integrated copper wire wool, a silicone cleaning cover, and extra tip storage slots.
Technical Specifications
Brand & Model: SUNSHINE T12 Ultra
Input Voltage: AC 110V – 240V (50/60Hz Universal)
Rated Power: 75W
Temperature Range: 100°C – 480°C
Temperature Accuracy & Stability: ±1
∘
C
Compatible Tip Series: T12 Integrated Heating Tips
Display Type: Custom Digital Tube Display
Auto Sleep Time: OFF to 120 minutes (configurable)
